Vue éclatée plaque de cuisson SHARP KH-9I39CS00-FR KH-9I39CS00

Découvrez la vue éclatée complète Plaque de cuisson SHARP KH-9I39CS00-FR KH-9I39CS00, un guide indispensable pour identifier facilement toutes les pièces détachées de votre appareil. Que vous soyez à la recherche d’une pièce en particulier ou simplement pour vous aider à la réparation, notre présentation détaillée vous aide à comprendre chaque composant de votre Plaque de cuisson. Optimisez la maintenance et la réparation de votre appareil grâce à des schémas précis et des références adaptées. Trouvez rapidement les pièces qu'il vous faut pour prolonger la durée de vie de votre Plaque de cuisson SHARP KH-9I39CS00-FR KH-9I39CS00 et éviter les pannes imprévues.

Assistant réparation Powered by ChatGPT

Liste des pièces détachées

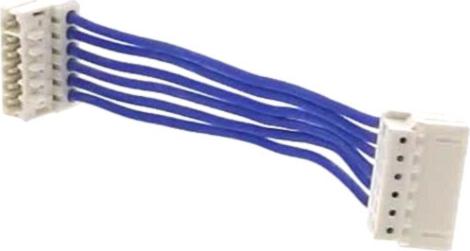

CABLE Plaque PLATINE DE COMMANDE-COMMANDE
CABLE Plaque PLATINE DE COMMANDE-COMMANDE
Prix indicatif : 10.7 €
NOTICE Froid UTILISATION
NOTICE Froid UTILISATION
Prix indicatif : 9.67 €
VIS Cuisinière SUPPORT RESISTANCE Supérieur
VIS Cuisinière SUPPORT RESISTANCE Supérieur
Position : 4
Prix indicatif : 2.43 €
BORNIER Plaque Alimentation ELECTRIQUE
BORNIER Plaque Alimentation ELECTRIQUE
Position : 30
Prix indicatif : 24.13 €

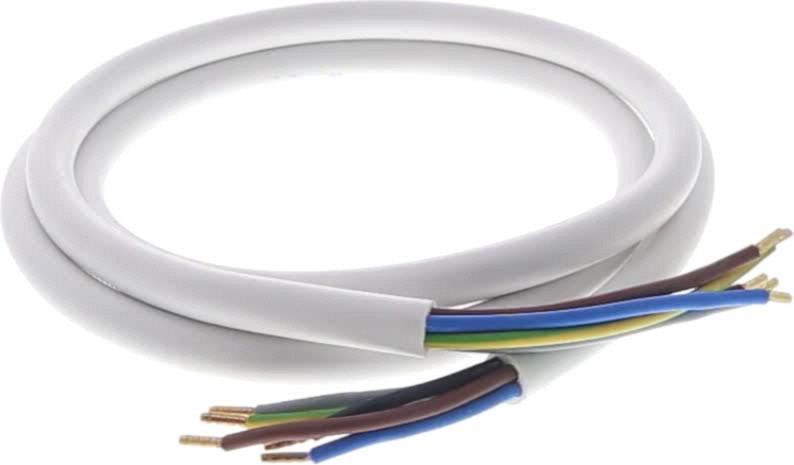

CABLE Cuisinière ALIMENTATION S/PRISE 5G2.5 1.6m
CABLE Cuisinière ALIMENTATION S/PRISE 5G2.5 1.6m
Position : 31
Prix indicatif : 24.47 €
RESSORT Plaque V FIXE PLAQUE RAD-HL
RESSORT Plaque V FIXE PLAQUE RAD-HL
Position : 151
Prix indicatif : 7.05 €
GRATTOIR Plaque OPTION VITRO CERAMIQUE
GRATTOIR Plaque OPTION VITRO CERAMIQUE
Position : 186
Prix indicatif : 5.05 €
SUPPORT Plaque PLAQUE remplace par KIT
SUPPORT Plaque PLAQUE remplace par KIT
Position : 222
Prix indicatif : 11.47 €
TAQUE Plaque VITRO 5I
TAQUE Plaque VITRO 5I
Position : 249
Prix indicatif : 313.17 €
SUPPORT Plaque GAUCHE PLATINE COMMANDE
SUPPORT Plaque GAUCHE PLATINE COMMANDE
Position : 355
Prix indicatif : 29.27 €
SUPPORT Plaque CENTRAL PLATINE COMMANDE
SUPPORT Plaque CENTRAL PLATINE COMMANDE
Position : 355
Prix indicatif : 28.03 €

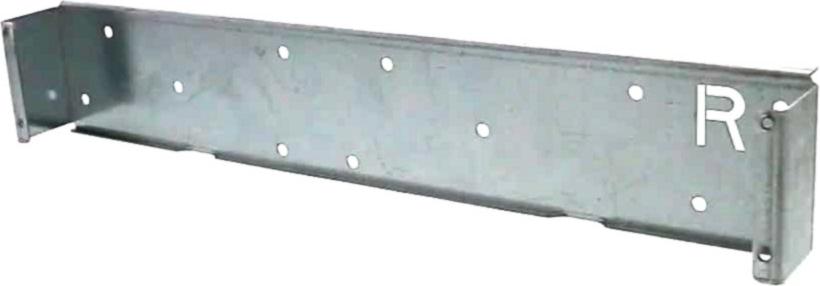

SUPPORT Plaque DROIT PLATINE COMMANDE
SUPPORT Plaque DROIT PLATINE COMMANDE
Position : 355
Prix indicatif : 26.6 €
SUPPORT Plaque PLATINE COMMANDE
SUPPORT Plaque PLATINE COMMANDE
Position : 429
Prix indicatif : 25.17 €

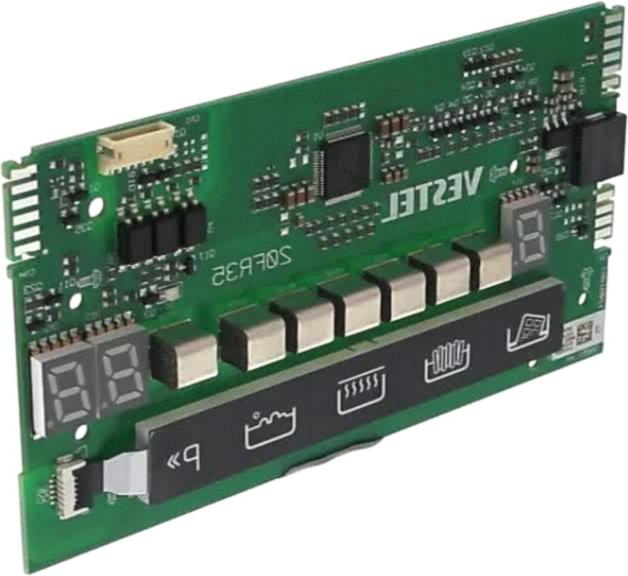

PLATINE Plaque COMMANDE CENTRALE 20FR35 .23585783 90CM V1.6
PLATINE Plaque COMMANDE CENTRALE 20FR35 .23585783 90CM V1.6
Position : 517
Prix indicatif : 85.21 €
PLATINE Plaque COMMANDE GAUCHE BRIDGE 20FR36 23582061 V1.6
PLATINE Plaque COMMANDE GAUCHE BRIDGE 20FR36 23582061 V1.6
Position : 517
Prix indicatif : 111.17 €

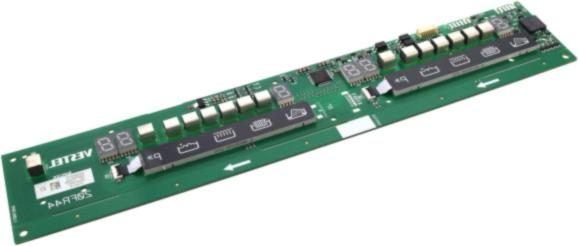

PLATINE Plaque COMMANDE DROITE 23589012
PLATINE Plaque COMMANDE DROITE 23589012
Position : 517
Prix indicatif : 103.99 €

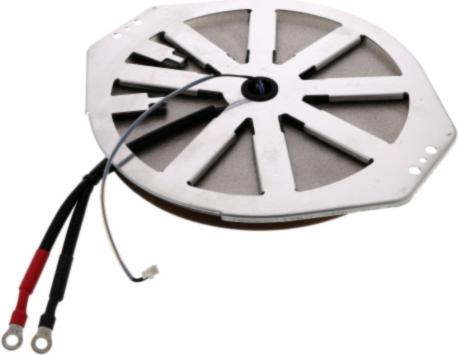

INDUCTEUR Plaque 200MM
INDUCTEUR Plaque 200MM
Position : 518
Prix indicatif : 62.19 €
INDUCTEUR Plaque 250MM
INDUCTEUR Plaque 250MM
Position : 518
Prix indicatif : 146.82 €

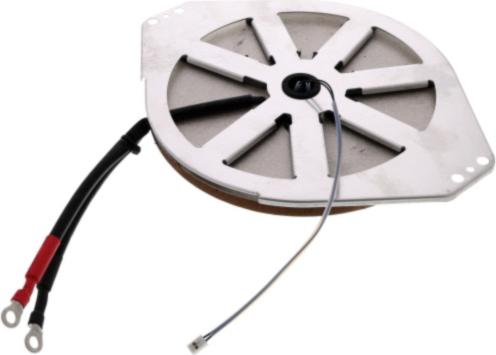

INDUCTEUR Plaque 160MM
INDUCTEUR Plaque 160MM
Position : 518
Prix indicatif : 55.98 €
VENTILATEUR Plaque
VENTILATEUR Plaque
Position : 519
Prix indicatif : 28.34 €
COLLIER Plaque CABLE
COLLIER Plaque CABLE
Position : 521
Prix indicatif : 9.11 €
VIS Plaque 5*6
VIS Plaque 5*6
Position : 523
Prix indicatif : 2.33 €
CABLE Plaque PLATINE PUISSANCE - PLATINE COMMANDE 235mm
CABLE Plaque PLATINE PUISSANCE - PLATINE COMMANDE 235mm
Position : 554
Prix indicatif : 44.32 €

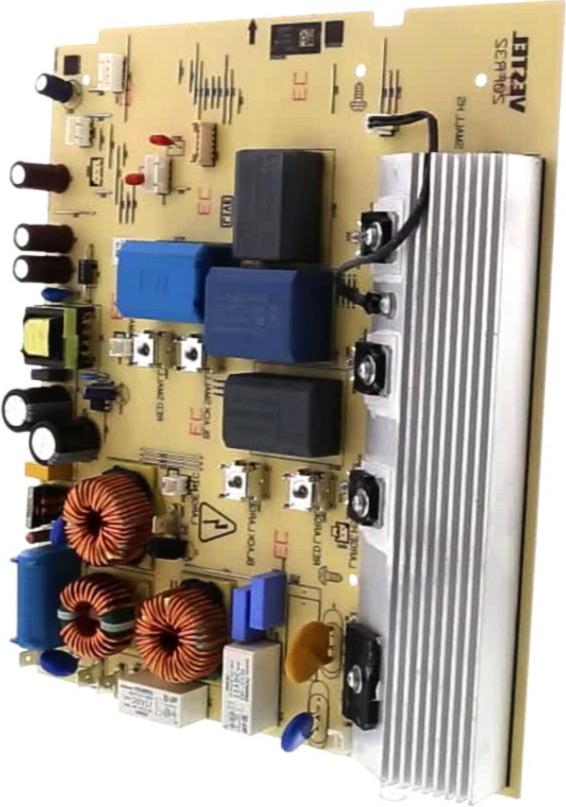

PLATINE Plaque PUISSANCE 2I 23517947
PLATINE Plaque PUISSANCE 2I 23517947
Position : 556
Prix indicatif : 230.87 €

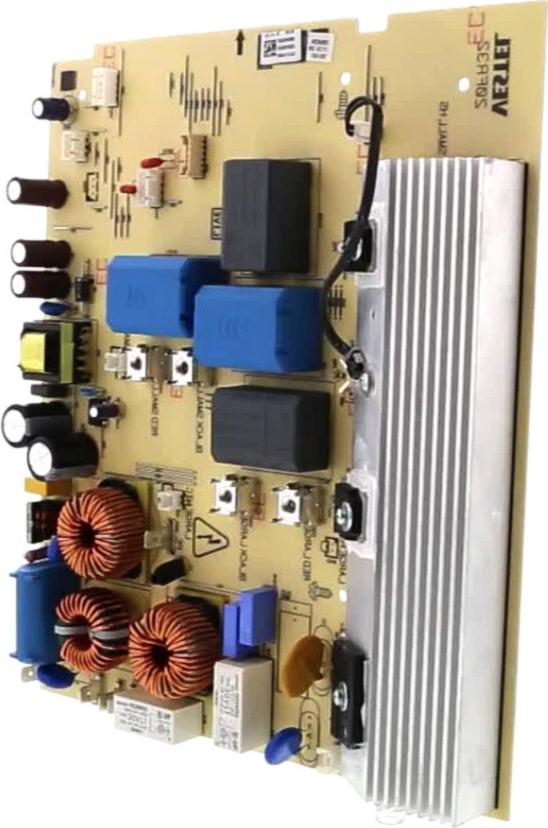

PLATINE Plaque PUISSANCE BRIDGE GAUCHE
PLATINE Plaque PUISSANCE BRIDGE GAUCHE
Position : 556
Prix indicatif : 246.38 €

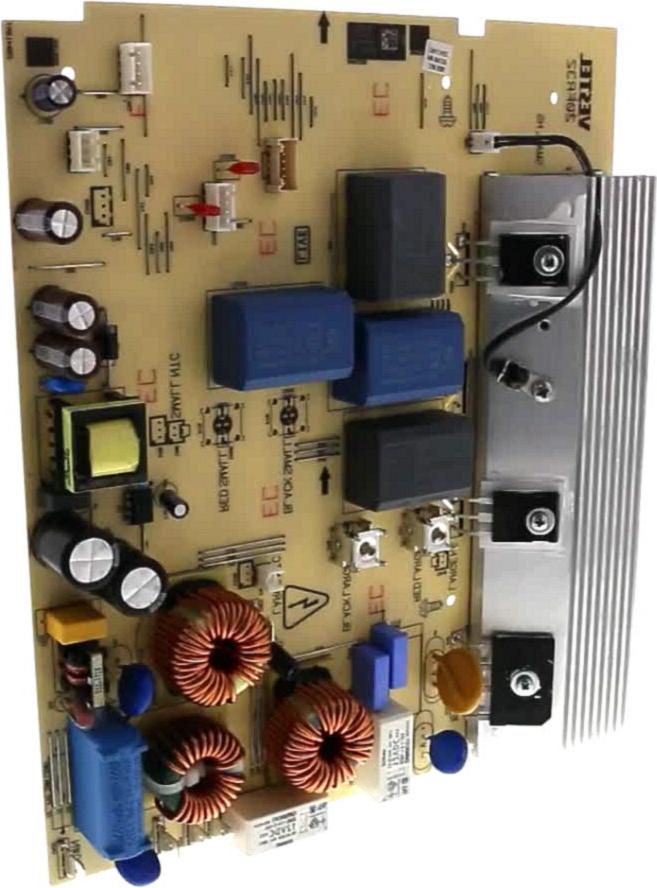

PLATINE Plaque PUISSANCE 1I 2500MM 23517965
PLATINE Plaque PUISSANCE 1I 2500MM 23517965
Position : 556
Prix indicatif : 195.03 €
SUPPORT Plaque INDUCTEUR
SUPPORT Plaque INDUCTEUR
Position : 557
Prix indicatif : 24.63 €
VIS Plaque 4,2*9,5
VIS Plaque 4,2*9,5
Position : 594
Prix indicatif : 2.56 €
