Vue éclatée plaque de cuisson SHARP KH-9I39CS00-EU KH-9I39CS00

Découvrez la vue éclatée complète Plaque de cuisson SHARP KH-9I39CS00-EU KH-9I39CS00, un guide indispensable pour identifier facilement toutes les pièces détachées de votre appareil. Que vous soyez à la recherche d’une pièce en particulier ou simplement pour vous aider à la réparation, notre présentation détaillée vous aide à comprendre chaque composant de votre Plaque de cuisson. Optimisez la maintenance et la réparation de votre appareil grâce à des schémas précis et des références adaptées. Trouvez rapidement les pièces qu'il vous faut pour prolonger la durée de vie de votre Plaque de cuisson SHARP KH-9I39CS00-EU KH-9I39CS00 et éviter les pannes imprévues.

Assistant réparation Powered by ChatGPT

Liste des pièces détachées

NOTICE Plaque UTILISATION
NOTICE Plaque UTILISATION
Prix indicatif : 8.99 €
VIS Cuisinière SUPPORT RESISTANCE Supérieur
VIS Cuisinière SUPPORT RESISTANCE Supérieur
Position : 4
Prix indicatif : 2.42 €
BORNIER Plaque Alimentation ELECTRIQUE
BORNIER Plaque Alimentation ELECTRIQUE
Position : 30
Prix indicatif : 22.85 €
CABLE Cuisinière ALIMENTATION 3G4 1.6m
CABLE Cuisinière ALIMENTATION 3G4 1.6m
Position : 31
Prix indicatif : 16.61 €
RESSORT Plaque V FIXE PLAQUE RAD-HL
RESSORT Plaque V FIXE PLAQUE RAD-HL
Position : 151
Prix indicatif : 6.57 €
GRATTOIR Plaque OPTION VITRO CERAMIQUE
GRATTOIR Plaque OPTION VITRO CERAMIQUE
Position : 186
Prix indicatif : 4.78 €
SUPPORT Plaque PLAQUE remplace par KIT
SUPPORT Plaque PLAQUE remplace par KIT
Position : 222
Prix indicatif : 11.78 €
TAQUE Plaque VITRO 5I
TAQUE Plaque VITRO 5I
Position : 249
Prix indicatif : 291.84 €
SUPPORT Plaque GAUCHE PLATINE COMMANDE
SUPPORT Plaque GAUCHE PLATINE COMMANDE
Position : 355
Prix indicatif : 30.25 €
SUPPORT Plaque CENTRAL PLATINE COMMANDE
SUPPORT Plaque CENTRAL PLATINE COMMANDE
Position : 355
Prix indicatif : 24.55 €
SUPPORT Plaque DROIT PLATINE COMMANDE
SUPPORT Plaque DROIT PLATINE COMMANDE
Position : 355
Prix indicatif : 29.59 €
SUPPORT Plaque PLATINE COMMANDE
SUPPORT Plaque PLATINE COMMANDE
Position : 429
Prix indicatif : 30.09 €

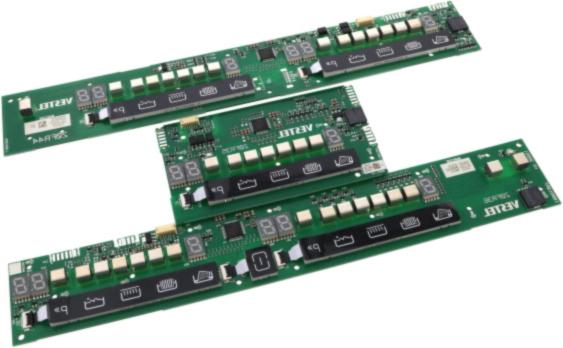

PLATINE Plaque COMMANDE KIT DROITE+GAUCHE+CENTRALE 23585783
PLATINE Plaque COMMANDE KIT DROITE+GAUCHE+CENTRALE 23585783
Position : 517
Prix indicatif : 177.69 €
INDUCTEUR Plaque 200MM
INDUCTEUR Plaque 200MM
Position : 518
Prix indicatif : 60.01 €
INDUCTEUR Plaque 250MM
INDUCTEUR Plaque 250MM
Position : 518
Prix indicatif : 127.77 €
INDUCTEUR Plaque 160MM
INDUCTEUR Plaque 160MM
Position : 518
Prix indicatif : 64.39 €
VENTILATEUR Plaque
VENTILATEUR Plaque
Position : 519
Prix indicatif : 28.07 €
COLLIER Plaque CABLE
COLLIER Plaque CABLE
Position : 521
Prix indicatif : 8.82 €
VIS Plaque 5*6
VIS Plaque 5*6
Position : 523
Prix indicatif : 2.45 €
VIS Froid ENJOLIVEUR DISPLAY
VIS Froid ENJOLIVEUR DISPLAY
Position : 536
Prix indicatif : 2.69 €
CABLE Plaque PLATINE PUISSANCE - PLATINE COMMANDE 235mm
CABLE Plaque PLATINE PUISSANCE - PLATINE COMMANDE 235mm
Position : 554
Prix indicatif : 50.45 €
PLATINE Plaque PUISSANCE 2I 23517947
PLATINE Plaque PUISSANCE 2I 23517947
Position : 556
Prix indicatif : 235.7 €
PLATINE Plaque PUISSANCE BRIDGE GAUCHE
PLATINE Plaque PUISSANCE BRIDGE GAUCHE
Position : 556
Prix indicatif : 206.41 €
PLATINE Plaque PUISSANCE 1I 2500MM 23517965
PLATINE Plaque PUISSANCE 1I 2500MM 23517965
Position : 556
Prix indicatif : 230.79 €
SUPPORT Plaque INDUCTEUR
SUPPORT Plaque INDUCTEUR
Position : 557
Prix indicatif : 24.03 €
VIS Plaque 4,2*9,5
VIS Plaque 4,2*9,5
Position : 594
Prix indicatif : 2.29 €
