Vue éclatée réfrigérateur CURTISS USP19G 903299

Découvrez la vue éclatée complète réfrigérateur CURTISS USP19G 903299, un guide indispensable pour identifier facilement toutes les pièces détachées de votre appareil. Que vous soyez à la recherche d’une pièce en particulier ou simplement pour vous aider à la réparation, notre présentation détaillée vous aide à comprendre chaque composant de votre réfrigérateur. Optimisez la maintenance et la réparation de votre appareil grâce à des schémas précis et des références adaptées. Trouvez rapidement les pièces qu'il vous faut pour prolonger la durée de vie de votre réfrigérateur CURTISS USP19G 903299 et éviter les pannes imprévues.

Assistant réparation Powered by ChatGPT

Liste des pièces détachées

SUPPORT Froid TOP BLANC
SUPPORT Froid TOP BLANC
Position : 1
Prix indicatif : 5.02 €
PORTE Froid Réfrigérateur
PORTE Froid Réfrigérateur
Position : 1
Prix indicatif : 99.15 €
SUPPORT Plaque Thermostat
SUPPORT Plaque Thermostat
Position : 1
Prix indicatif : 4.02 €
BALCONNET Froid TRANSPARENT BLEU
BALCONNET Froid TRANSPARENT BLEU
Position : 2
Thermostat Froid K59L2722 K59L2734 TAM133 1,5M
Thermostat Froid K59L2722 K59L2734 TAM133 1,5M
Position : 2
Prix indicatif : 40.2 €
DESSUS Froid TOP
DESSUS Froid TOP
Position : 2
SUPPORT Froid BOUTEILLES
SUPPORT Froid BOUTEILLES
Position : 3
SUPPORT Froid MANETTE
SUPPORT Froid MANETTE
Position : 3
Prix indicatif : 10.29 €
SUPPORT Froid OEUFS
SUPPORT Froid OEUFS
Position : 4
Prix indicatif : 12.25 €

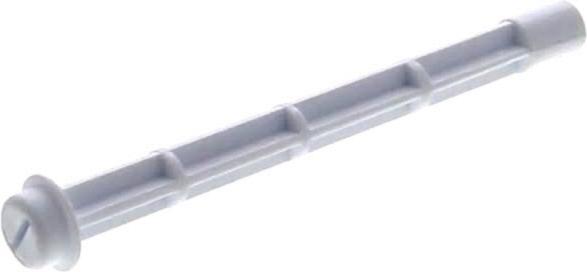

MANETTE Froid THERMOSTAT
MANETTE Froid THERMOSTAT
Position : 4
Prix indicatif : 10.41 €
AMPOULE Froid 15w
AMPOULE Froid 15w
Position : 5
Prix indicatif : 3.6 €
CACHE Froid VIS
CACHE Froid VIS
Position : 5
Prix indicatif : 4.1 €
DOUILLE Froid LAMPE
DOUILLE Froid LAMPE
Position : 6
CHARNIERE Froid Supérieur
CHARNIERE Froid Supérieur
Position : 6
Prix indicatif : 4.68 €
Interrupteur Froid LAMPE
Interrupteur Froid LAMPE
Position : 7
RONDELLE Froid Charnière INF/CENT/SUP
RONDELLE Froid Charnière INF/CENT/SUP
Position : 7
Prix indicatif : 2.84 €
BAC Froid GLACONS
BAC Froid GLACONS
Position : 8
Prix indicatif : 12.37 €
GRILLE Froid SOUPLE
GRILLE Froid SOUPLE
Position : 9
Prix indicatif : 3.29 €
RACLETTE Froid
RACLETTE Froid
Position : 10
Prix indicatif : 9.6 €
PORTE Froid FREEZER 490*187*45
PORTE Froid FREEZER 490*187*45
Position : 11
PLAFONNIER Froid LAMPE
PLAFONNIER Froid LAMPE
Position : 11
CLAYETTE Froid VERRE    494*322
CLAYETTE Froid VERRE 494*322
Position : 12
DESHYDRATEUR Froid 15G
DESHYDRATEUR Froid 15G
Position : 12
Prix indicatif : 7.7 €
DESSUS Froid BAC LEGUMES 490*235
DESSUS Froid BAC LEGUMES 490*235
Position : 13
Prix indicatif : 25.82 €
BAC Froid DEGIVRAGE
BAC Froid DEGIVRAGE
Position : 13
Prix indicatif : 9.59 €
PROFIL Froid DESSUS BAC LEGUMES
PROFIL Froid DESSUS BAC LEGUMES
Position : 14
Prix indicatif : 7.16 €
COMPRESSEUR 1/9  R600A
COMPRESSEUR 1/9 R600A
Position : 14
Prix indicatif : 92.47 €
RELAIS Froid M3P-04-4.8
RELAIS Froid M3P-04-4.8
Position : 15
BAC Froid LEGUMES TRANSPARENT BLEU 252*225*150
BAC Froid LEGUMES TRANSPARENT BLEU 252*225*150
Position : 15
Prix indicatif : 19.51 €
RONDELLE Froid Charnière
RONDELLE Froid Charnière
Position : 16
Prix indicatif : 2.94 €
CONDENSATEUR Froid 4uF
CONDENSATEUR Froid 4uF
Position : 16
Prix indicatif : 32.95 €
CHARNIERE Froid Inférieur
CHARNIERE Froid Inférieur
Position : 17
Prix indicatif : 7.33 €
CONDO Froid 4uF FIXATION VIS remplace par FIXATION CLIPS PLASTIQUE
CONDO Froid 4uF FIXATION VIS remplace par FIXATION CLIPS PLASTIQUE
Position : 17
Prix indicatif : 23.09 €
PIED Froid AVANT Droit
PIED Froid AVANT Droit
Position : 18
Prix indicatif : 16.53 €
PIED Froid AVANT Gauche
PIED Froid AVANT Gauche
Position : 19
Prix indicatif : 12.39 €
INDICATEUR Froid TEMP
INDICATEUR Froid TEMP
Position : 20
Prix indicatif : 13.76 €
