Vue éclatée réfrigérateur TT86S - Mieux réparer, moins jeter

Warning: Trying to access array offset on value of type bool in /var/www/exploded/vue.php on line 167

Deprecated: htmlspecialchars(): Passing null to parameter #1 ($string) of type string is deprecated in /var/www/exploded/vue.php on line 167

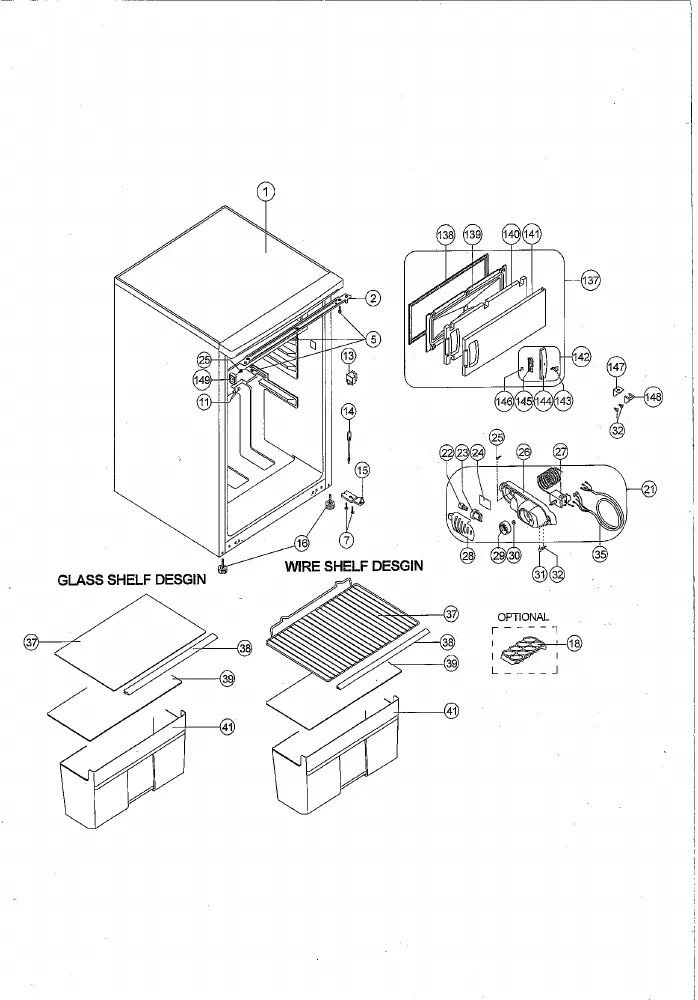

Vue éclatée réfrigérateur
Warning: Trying to access array offset on value of type bool in /var/www/exploded/vue.php on line 174

Deprecated: htmlspecialchars(): Passing null to parameter #1 ($string) of type string is deprecated in /var/www/exploded/vue.php on line 174
TT86S

Découvrez la vue éclatée complète réfrigérateur
Warning: Trying to access array offset on value of type bool in /var/www/exploded/vue.php on line 178

Deprecated: htmlspecialchars(): Passing null to parameter #1 ($string) of type string is deprecated in /var/www/exploded/vue.php on line 178
TT86S, un guide indispensable pour identifier facilement toutes les pièces détachées de votre appareil. Que vous soyez à la recherche d’une pièce en particulier ou simplement pour vous aider à la réparation, notre présentation détaillée vous aide à comprendre chaque composant de votre réfrigérateur. Optimisez la maintenance et la réparation de votre appareil grâce à des schémas précis et des références adaptées. Trouvez rapidement les pièces qu'il vous faut pour prolonger la durée de vie de votre réfrigérateur
Warning: Trying to access array offset on value of type bool in /var/www/exploded/vue.php on line 178

Deprecated: htmlspecialchars(): Passing null to parameter #1 ($string) of type string is deprecated in /var/www/exploded/vue.php on line 178
TT86S et éviter les pannes imprévues.

Assistant réparation Powered by ChatGPT

Liste des pièces détachées

VIS Froid
VIS Froid
Prix indicatif : 2.08 €
CHARNIERE Froid Supérieur 110V
CHARNIERE Froid Supérieur 110V
Position : 2
Prix indicatif : 12.54 €
VIS Froid FIXE SUPPORT Charnière Supérieur
VIS Froid FIXE SUPPORT Charnière Supérieur
Position : 5
Prix indicatif : 2.79 €
VIS Froid CHARNIERES Supérieur M5*14
VIS Froid CHARNIERES Supérieur M5*14
Position : 7
Prix indicatif : 2.1 €
CACHE Froid PETIT MODELE
CACHE Froid PETIT MODELE
Position : 11
Prix indicatif : 2.7 €
Interrupteur Froid LUMIERE
Interrupteur Froid LUMIERE
Position : 13
Prix indicatif : 14.94 €
TIGE Froid TUYAU DEGIVRAGE
TIGE Froid TUYAU DEGIVRAGE
Position : 14
Prix indicatif : 5.37 €
CHARNIERE Froid Inférieur Droit OU Gauche
CHARNIERE Froid Inférieur Droit OU Gauche
Position : 15
Prix indicatif : 11.83 €
PIED Froid AVANT Blanc IW (lot de 2)
PIED Froid AVANT Blanc IW (lot de 2)
Position : 16
Prix indicatif : 13.95 €
BAC Froid GLACONS IW
BAC Froid GLACONS IW
Position : 18
Prix indicatif : 7.49 €
AMPOULE Froid 15W E14 240V 26*57
AMPOULE Froid 15W E14 240V 26*57
Position : 22
Prix indicatif : 6.45 €
DOUILLE Froid LAMPE
DOUILLE Froid LAMPE
Position : 23
Prix indicatif : 13.73 €
REFLECTEUR Froid LAMPE
REFLECTEUR Froid LAMPE
Position : 24
Prix indicatif : 8.19 €
VIS Froid 40*13 INOX
VIS Froid 40*13 INOX
Position : 25
Prix indicatif : 2.36 €
BOITE Froid Thermostat
BOITE Froid Thermostat
Position : 26
Prix indicatif : 11.86 €
Thermostat Froid AP05-06-2005
Thermostat Froid AP05-06-2005
Position : 27
Prix indicatif : 41.91 €
PLAFONNIER Froid AMPOULE 110
PLAFONNIER Froid AMPOULE 110
Position : 28
Prix indicatif : 6.44 €
MANETTE Froid Thermostat Blanc 0à5 IW
MANETTE Froid Thermostat Blanc 0à5 IW
Position : 29
Prix indicatif : 8.39 €
CLIPS Froid MANETTE Thermostat
CLIPS Froid MANETTE Thermostat
Position : 30
Prix indicatif : 2.71 €
CACHE Froid VIS BOITE Thermostat
CACHE Froid VIS BOITE Thermostat
Position : 31
Prix indicatif : 4.44 €
CABLAGE Froid Thermostat
CABLAGE Froid Thermostat
Position : 35
Prix indicatif : 24.81 €
CLAYETTE Froid FIL Réfrigérateur Blanc 390*275
CLAYETTE Froid FIL Réfrigérateur Blanc 390*275
Position : 37
Prix indicatif : 27.68 €
DESSUS Froid BAC LEGUMES VERRE 388*187 110
DESSUS Froid BAC LEGUMES VERRE 388*187 110
Position : 39
Prix indicatif : 23.4 €
BAC Froid LEGUMES BLANC IW
BAC Froid LEGUMES BLANC IW
Position : 41
Prix indicatif : 23.23 €
ECROU Froid
ECROU Froid
Position : 91
Prix indicatif : 2.77 €
Porte Froid FREEZER 2* 368*149 IW
Porte Froid FREEZER 2* 368*149 IW
Position : 137
Prix indicatif : 37.28 €
POIGNEE Froid PORTE FREEZER IW
POIGNEE Froid PORTE FREEZER IW
Position : 142
Prix indicatif : 20.58 €
RESSORT Froid POIGNEE PORTE FREEZER
RESSORT Froid POIGNEE PORTE FREEZER
Position : 146
Prix indicatif : 16.38 €
CHARNIERE Froid PORTE FREEZER IW
CHARNIERE Froid PORTE FREEZER IW
Position : 147
Prix indicatif : 9.39 €
CACHE Froid Charnière Inférieur Porte FREEZER IW
CACHE Froid Charnière Inférieur Porte FREEZER IW
Position : 148
Prix indicatif : 2.51 €
CLIPS Froid FERME Porte FREEZER IW
CLIPS Froid FERME Porte FREEZER IW
Position : 149
Prix indicatif : 6.86 €
CACHE Froid TROU CHARNIERE
CACHE Froid TROU CHARNIERE
Position : 152
Prix indicatif : 2.7 €
Porte Froid Réfrigérateur "110F" Blanc IW (délai 2 mois)
Porte Froid Réfrigérateur "110F" Blanc IW (délai 2 mois)
Position : 155
Prix indicatif : 106.38 €
SUPPORT Froid BOUTEILLES Blanc 344mm IW
SUPPORT Froid BOUTEILLES Blanc 344mm IW
Position : 167
Prix indicatif : 10.71 €
DOUILLE Froid TROU CHARNIERE Blanc
DOUILLE Froid TROU CHARNIERE Blanc
Position : 180
Prix indicatif : 6.65 €
CONDENSEUR Froid 12 SPIRES ap 664078
CONDENSEUR Froid 12 SPIRES ap 664078
Position : 201
Prix indicatif : 58.14 €
ENTRETOISE Froid CONDENSEUR
ENTRETOISE Froid CONDENSEUR
Position : 203
Prix indicatif : 2.29 €
ENTRETOISE Froid CONDENSEUR
ENTRETOISE Froid CONDENSEUR
Position : 204
Prix indicatif : 2.56 €
VIS Froid 4.8*13
VIS Froid 4.8*13
Position : 205
Prix indicatif : 2.5 €
MASTIC Froid ANTI-VIBRATION
MASTIC Froid ANTI-VIBRATION
Position : 207
Prix indicatif : 5.2 €
CABLE Froid ALIMENTATION
CABLE Froid ALIMENTATION
Position : 210
Prix indicatif : 10.47 €
RELAIS Froid Démarrage+thermique THG1340YKS
RELAIS Froid Démarrage+thermique THG1340YKS
Position : 211
Prix indicatif : 46.62 €
VIS Froid
VIS Froid
Position : 213
Prix indicatif : 2.24 €
BAC Froid DEGIVRAGE av471461
BAC Froid DEGIVRAGE av471461
Position : 214
Prix indicatif : 17.7 €
DESHYDRATEUR Froid
DESHYDRATEUR Froid
Position : 215
Prix indicatif : 5.33 €
SUPPORT Froid COMPRESSEUR
SUPPORT Froid COMPRESSEUR
Position : 216
Prix indicatif : 43.43 €
COMPRESSEUR Froid Réfrigérateur
COMPRESSEUR Froid Réfrigérateur
Position : 217
Prix indicatif : 95.56 €
SUPPORT Froid COMPRESSEUR
SUPPORT Froid COMPRESSEUR
Position : 218
Prix indicatif : 37.52 €
FIL Froid MASSE
FIL Froid MASSE
Position : 219
Prix indicatif : 2.67 €
RONDELLE Froid
RONDELLE Froid
Position : 221
Prix indicatif : 2.21 €
PIED Froid ARRIERE
PIED Froid ARRIERE
Position : 223
Prix indicatif : 5.04 €
VIS Froid
VIS Froid
Position : 224
Prix indicatif : 2.49 €
VIS Froid
VIS Froid
Position : 224
Prix indicatif : 2.51 €
TUYAU Froid
TUYAU Froid
Position : 225
Prix indicatif : 7.79 €
