Vue éclatée réfrigérateur WINIA WFD-H250S

Découvrez la vue éclatée complète réfrigérateur WINIA WFD-H250S, un guide indispensable pour identifier facilement toutes les pièces détachées de votre appareil. Que vous soyez à la recherche d’une pièce en particulier ou simplement pour vous aider à la réparation, notre présentation détaillée vous aide à comprendre chaque composant de votre réfrigérateur. Optimisez la maintenance et la réparation de votre appareil grâce à des schémas précis et des références adaptées. Trouvez rapidement les pièces qu'il vous faut pour prolonger la durée de vie de votre réfrigérateur WINIA WFD-H250S et éviter les pannes imprévues.

Assistant réparation Powered by ChatGPT

Liste des pièces détachées

CLAYETTE Froid Congélateur 388*350
CLAYETTE Froid Congélateur 388*350
Position : 2
Prix indicatif : 26.72 €
CACHE Froid SONDE
CACHE Froid SONDE
Position : 3
Prix indicatif : 8.62 €
CHARNIERE Froid Supérieur
CHARNIERE Froid Supérieur
Position : 4
Prix indicatif : 15.29 €
BUTEE Froid PORTE GCHE
BUTEE Froid PORTE GCHE
Position : 5
Prix indicatif : 12.5 €
JOINT Froid Congélateur Blanc 512*3925
JOINT Froid Congélateur Blanc 512*3925
Position : 5
Prix indicatif : 26.64 €
DESSUS Froid TOP Blanc 545*513 DF2-28B/C.00-02
DESSUS Froid TOP Blanc 545*513 DF2-28B/C.00-02
Position : 8
Prix indicatif : 88.95 €
BUTEE Froid GAUCHE PORTE Réfrigérateur
BUTEE Froid GAUCHE PORTE Réfrigérateur
Position : 9
Prix indicatif : 13.03 €
BUTEE Froid Inférieur Droit PORTE Réfrigérateur
BUTEE Froid Inférieur Droit PORTE Réfrigérateur
Position : 9
Prix indicatif : 16.52 €
JOINT Froid PORTE Réfrigérateur 1140*515
JOINT Froid PORTE Réfrigérateur 1140*515
Position : 9
Prix indicatif : 35.81 €
BALCONNET Froid SUP/CENT 440*50*100
BALCONNET Froid SUP/CENT 440*50*100
Position : 11
Prix indicatif : 25.23 €
BALCONNET Froid BOUTEILLES TRANSPARENT CLAIR 440*90*110
BALCONNET Froid BOUTEILLES TRANSPARENT CLAIR 440*90*110
Position : 12
Prix indicatif : 34.83 €
BAC Froid LEGUMES TRANSPARENT CLAIR 446*192*170
BAC Froid LEGUMES TRANSPARENT CLAIR 446*192*170
Position : 13
Prix indicatif : 40.05 €
CABLE Froid ALIMENTATION
CABLE Froid ALIMENTATION
Position : 16
Prix indicatif : 33.51 €
TUYAU Froid CHARGE
TUYAU Froid CHARGE
Position : 20
Prix indicatif : 18.84 €
TUYAU Froid RACCORDEMENT
TUYAU Froid RACCORDEMENT
Position : 21
Prix indicatif : 17.36 €
BAC Froid COMPRESSEUR
BAC Froid COMPRESSEUR
Position : 22
Prix indicatif : 24.78 €
PIED Froid
PIED Froid
Position : 25
Prix indicatif : 31.35 €
PIED Froid REGLABLE 42*28
PIED Froid REGLABLE 42*28
Position : 27
Prix indicatif : 12.73 €
CHARNIERE Froid INFERIEURE
CHARNIERE Froid INFERIEURE
Position : 28
Prix indicatif : 21.6 €
CLAYETTE Froid Réfrigérateur 460*300
CLAYETTE Froid Réfrigérateur 460*300
Position : 29
Prix indicatif : 43.54 €
PLATINE Froid ECLAIRAGE HR-B8C14-31018 EDBTW2-2H1-D-K
PLATINE Froid ECLAIRAGE HR-B8C14-31018 EDBTW2-2H1-D-K
Position : 31
Prix indicatif : 19.48 €
BOITIER Froid PLATINE G02N-01-A1
BOITIER Froid PLATINE G02N-01-A1
Position : 31
Prix indicatif : 24.31 €
PLAFONNIER Froid
PLAFONNIER Froid
Position : 31
Prix indicatif : 11.96 €

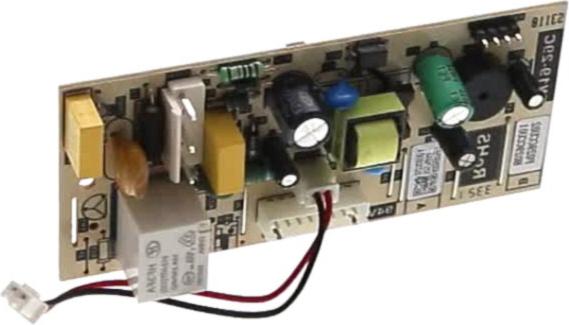

PLATINE Froid COMMANDE
PLATINE Froid COMMANDE
Position : 31
Prix indicatif : 32.52 €
Interrupteur Froid LUMIERE Réfrigérateur
Interrupteur Froid LUMIERE Réfrigérateur
Position : 37
Prix indicatif : 15.33 €
CHARNIERE Froid CENTRALE
CHARNIERE Froid CENTRALE
Position : 39
Prix indicatif : 32.29 €
SUPPORT Froid ŒUFS
SUPPORT Froid ŒUFS
Position : 44
Prix indicatif : 12.42 €
