Vue éclatée seche linge HE47 - Mieux réparer, moins jeter

Warning: Trying to access array offset on value of type bool in /var/www/exploded/vue.php on line 167

Deprecated: htmlspecialchars(): Passing null to parameter #1 ($string) of type string is deprecated in /var/www/exploded/vue.php on line 167

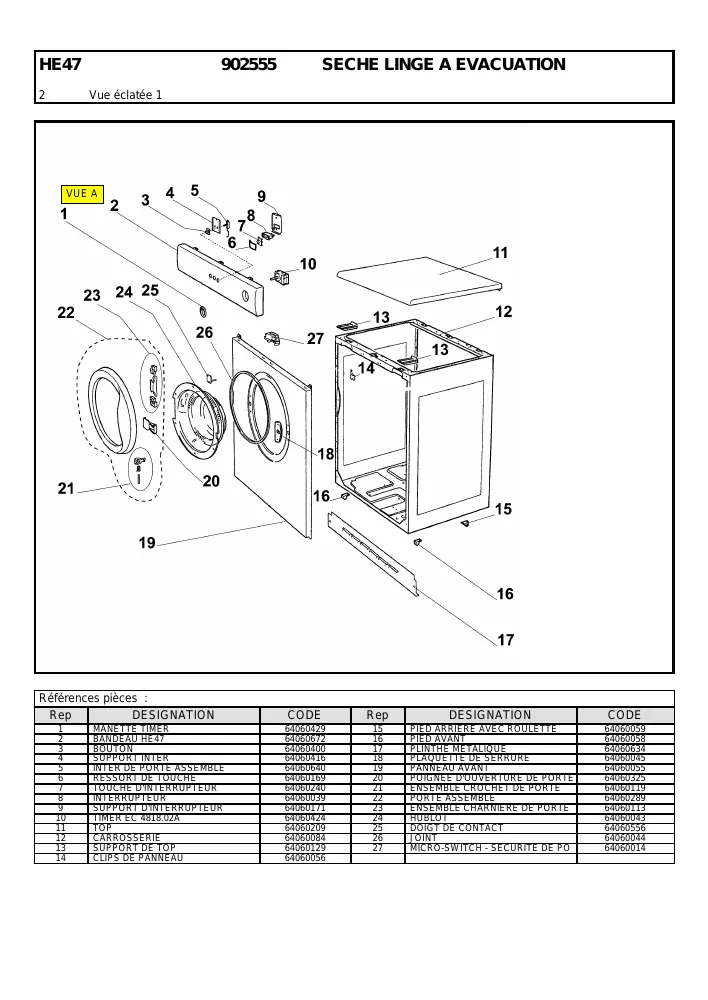

Vue éclatée seche linge
Warning: Trying to access array offset on value of type bool in /var/www/exploded/vue.php on line 174

Deprecated: htmlspecialchars(): Passing null to parameter #1 ($string) of type string is deprecated in /var/www/exploded/vue.php on line 174
HE47

Découvrez la vue éclatée complète seche linge
Warning: Trying to access array offset on value of type bool in /var/www/exploded/vue.php on line 178

Deprecated: htmlspecialchars(): Passing null to parameter #1 ($string) of type string is deprecated in /var/www/exploded/vue.php on line 178
HE47, un guide indispensable pour identifier facilement toutes les pièces détachées de votre appareil. Que vous soyez à la recherche d’une pièce en particulier ou simplement pour vous aider à la réparation, notre présentation détaillée vous aide à comprendre chaque composant de votre seche linge. Optimisez la maintenance et la réparation de votre appareil grâce à des schémas précis et des références adaptées. Trouvez rapidement les pièces qu'il vous faut pour prolonger la durée de vie de votre seche linge
Warning: Trying to access array offset on value of type bool in /var/www/exploded/vue.php on line 178

Deprecated: htmlspecialchars(): Passing null to parameter #1 ($string) of type string is deprecated in /var/www/exploded/vue.php on line 178
HE47 et éviter les pannes imprévues.

Assistant réparation Powered by ChatGPT

Liste des pièces détachées

CLIPS Sèche-Linge TURBINE
CLIPS Sèche-Linge TURBINE
Position : 1
Prix indicatif : 2.52 €
MANETTE Sèche-Linge PROG+RESSORT
MANETTE Sèche-Linge PROG+RESSORT
Position : 1
PIECE DEFINITIVEMENT EPUISEE EN USINE
PIECE DEFINITIVEMENT EPUISEE EN USINE
Position : 1
RESISTANCE Sèche-Linge 2500W
RESISTANCE Sèche-Linge 2500W
Position : 2
Prix indicatif : 55.01 €
BANDEAU Sèche-Linge
BANDEAU Sèche-Linge
Position : 2
Prix indicatif : 48.38 €
BOUTON Sèche-Linge Interrupteur
BOUTON Sèche-Linge Interrupteur
Position : 3
Prix indicatif : 3.76 €
THERMOSTAT Sèche-Linge REARMABLE
THERMOSTAT Sèche-Linge REARMABLE
Position : 4
PATIN Sèche-Linge GRAND MODELE
PATIN Sèche-Linge GRAND MODELE
Position : 4
PATIN Sèche-Linge PETIT MODELE
PATIN Sèche-Linge PETIT MODELE
Position : 4
Prix indicatif : 6.9 €
SUPPORT Sèche-Linge Interrupteur
SUPPORT Sèche-Linge Interrupteur
Position : 4
Prix indicatif : 9.51 €
FEUTRE Sèche-Linge + PATINS
FEUTRE Sèche-Linge + PATINS
Position : 5
FEUTRE Sèche-Linge AVANT
FEUTRE Sèche-Linge AVANT
Position : 5
Interrupteur Sèche-Linge M/A
Interrupteur Sèche-Linge M/A
Position : 5
CABLE Sèche-Linge Alimentation
CABLE Sèche-Linge Alimentation
Position : 5
Prix indicatif : 24.97 €
ANNEAU Sèche-Linge AVANT
ANNEAU Sèche-Linge AVANT
Position : 6
Prix indicatif : 68.35 €
BORNIER Sèche-Linge
BORNIER Sèche-Linge
Position : 6
Prix indicatif : 10.7 €
JOINT Sèche-Linge Couvercle BLOC Ventilation
JOINT Sèche-Linge Couvercle BLOC Ventilation
Position : 8
Prix indicatif : 6.63 €
Interrupteur Sèche-Linge BIPOLAIRE
Interrupteur Sèche-Linge BIPOLAIRE
Position : 8
Prix indicatif : 18.96 €
FILTRE Sèche-Linge PELUCHES
FILTRE Sèche-Linge PELUCHES
Position : 9
SUPPORT Sèche-Linge CLIPS FACADE
SUPPORT Sèche-Linge CLIPS FACADE
Position : 9
Prix indicatif : 2.32 €
JOINT Sèche-Linge THERMOSTAT
JOINT Sèche-Linge THERMOSTAT
Position : 10
Prix indicatif : 9.75 €
Programmateur Sèche-Linge SIBEL EC4818.02A01
Programmateur Sèche-Linge SIBEL EC4818.02A01
Position : 10
FACADE Sèche-Linge AVANT
FACADE Sèche-Linge AVANT
Position : 10
Prix indicatif : 53.47 €
Thermostat Sèche-Linge 143°C
Thermostat Sèche-Linge 143°C
Position : 11
Prix indicatif : 33.25 €
COUVERCLE Sèche-Linge TOP
COUVERCLE Sèche-Linge TOP
Position : 11
Prix indicatif : 51.08 €
CACHE Sèche-Linge RESISTANCE
CACHE Sèche-Linge RESISTANCE
Position : 12
Prix indicatif : 25.08 €
MEUBLE Sèche-Linge
MEUBLE Sèche-Linge
Position : 12
Prix indicatif : 110.36 €
SUPPORT Sèche-Linge RESISTANCE
SUPPORT Sèche-Linge RESISTANCE
Position : 13
Prix indicatif : 13.29 €
SUPPORT Lave-Linge TOP
SUPPORT Lave-Linge TOP
Position : 13
Prix indicatif : 4.3 €
COURROIE Sèche-Linge 1810J3
COURROIE Sèche-Linge 1810J3
Position : 14
Prix indicatif : 29.15 €
Thermostat Sèche-Linge NC60 SUR GAINE
Thermostat Sèche-Linge NC60 SUR GAINE
Position : 14
Prix indicatif : 20.99 €
ROUE Sèche-Linge PIED
ROUE Sèche-Linge PIED
Position : 15
Prix indicatif : 9.03 €
SUPPORT Sèche-Linge GAINE
SUPPORT Sèche-Linge GAINE
Position : 15
Prix indicatif : 17.79 €
TUYAU Sèche-Linge EVACUATION
TUYAU Sèche-Linge EVACUATION
Position : 16
Prix indicatif : 58.49 €
PIED Sèche-Linge AVANT
PIED Sèche-Linge AVANT
Position : 16
Prix indicatif : 5.04 €
CLIPS Lave-Linge MOTEUR
CLIPS Lave-Linge MOTEUR
Position : 17
Prix indicatif : 5.28 €
SUPPORT Sèche-Linge SECURITE PORTE
SUPPORT Sèche-Linge SECURITE PORTE
Position : 18
MOTEUR Sèche-Linge CAH140262  FM-6609E
MOTEUR Sèche-Linge CAH140262 FM-6609E
Position : 18
Prix indicatif : 183.06 €
TURBINE Sèche-Linge D155MM H83MM
TURBINE Sèche-Linge D155MM H83MM
Position : 20
POIGNEE Sèche-Linge HUBLOT
POIGNEE Sèche-Linge HUBLOT
Position : 20
KIT SL=crochet+axe+ressort
KIT SL=crochet+axe+ressort
Position : 21
COUVERCLE Sèche-Linge TURBINE
COUVERCLE Sèche-Linge TURBINE
Position : 21
Prix indicatif : 15.26 €
CONDENSATEUR Sèche-Linge 8uF
CONDENSATEUR Sèche-Linge 8uF
Position : 22
Prix indicatif : 13.07 €
ENJOLIVEUR Sèche-Linge
ENJOLIVEUR Sèche-Linge
Position : 22
CHARNIERE Sèche-Linge HUBLOT
CHARNIERE Sèche-Linge HUBLOT
Position : 23
Prix indicatif : 19.69 €
HUBLOT Sèche-Linge PLASTIQUE
HUBLOT Sèche-Linge PLASTIQUE
Position : 24
TAMBOUR Sèche-Linge + PALIER
TAMBOUR Sèche-Linge + PALIER
Position : 24
CROCHET Sèche-Linge MISE EN ROUTE
CROCHET Sèche-Linge MISE EN ROUTE
Position : 25
Batteur Sèche-Linge 364MM (ENTRAXE 330MM)
Batteur Sèche-Linge 364MM (ENTRAXE 330MM)
Position : 25
JOINT Sèche-Linge HUBLOT
JOINT Sèche-Linge HUBLOT
Position : 26
POULIE Sèche-Linge MOTEUR
POULIE Sèche-Linge MOTEUR
Position : 26
Prix indicatif : 10.16 €
SECURITE Sèche-Linge PORTE
SECURITE Sèche-Linge PORTE
Position : 27
Prix indicatif : 30.88 €
